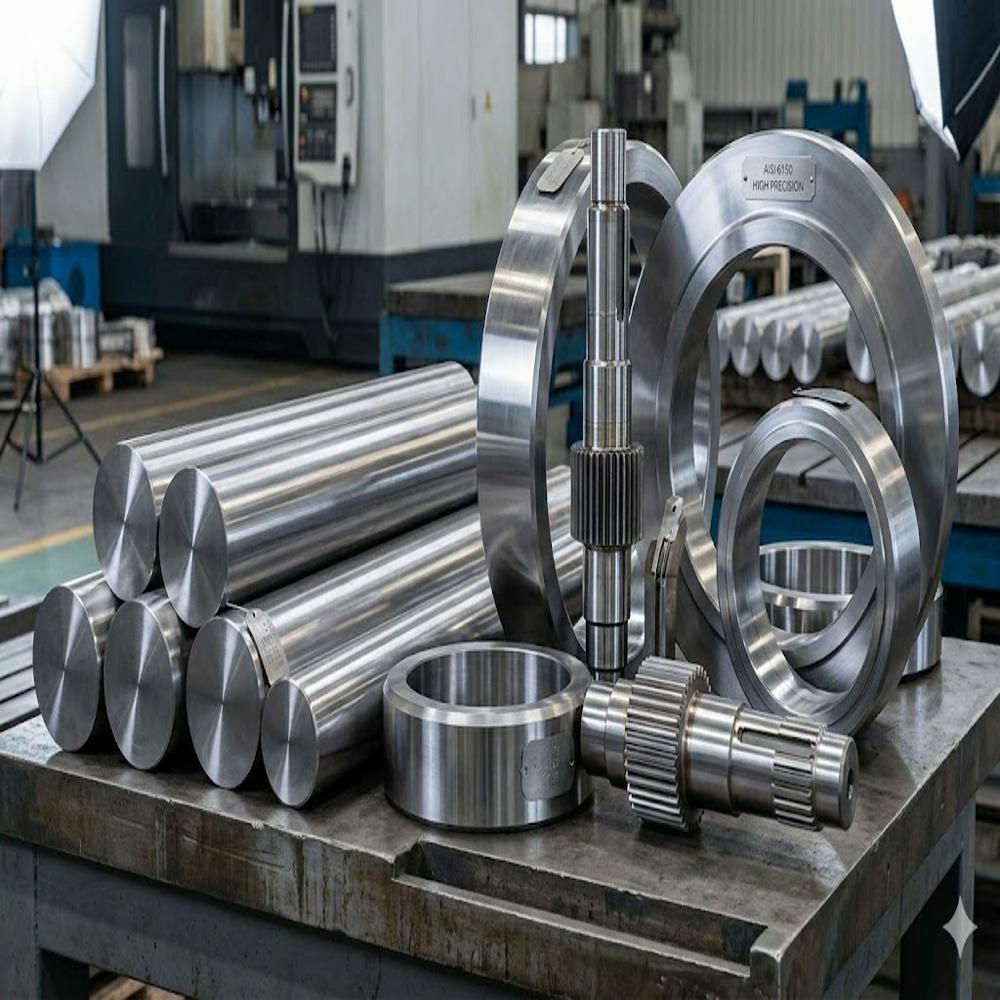

AISI 6150 51CrV4 1.8159 Cr V Spring Steel Forgings for Mining, Gear Drives and Power Shafts, Gears, Pinions, Torsion Bars and Rolled Rings Jiangsu Liangyi

Product Description

Jiangsu Liangyi is an ISO 9001:2015-certified alloy-steel forging manufacturer in China supplying AISI 6150 / 51CrV4 / W.Nr. 1.8159 (Cr-V spring steel) open-die forgings, seamless rolled rings and shafts to mining, gear-transmission, power, cement and oil & gas projects in India and worldwide, to ASTM A29 / EN 10083-3.

Why AISI 6150 / 51CrV4 for Indian mining, gear-drive and power projects

AISI 6150 is a chromium-vanadium spring/alloy steel with high hardenability and wear, shock and fatigue resistance, an upgrade over 5150 and 4140 under cyclic load. For India's mining, gear-transmission, cement and power sectors, it suits eccentric and gear shafts, gear rings, slewing races, pinions, torsion bars and heavy springs.

Documented capability

Mining: eccentric/gear shafts, slewing races, gear rings, transmission parts for crushers/excavators.

Gear drives/power: gear/pinion shafts, gear wheels, coupling/turbine shafts, spindles.

Springs: heavy springs, torsion bars, shock-absorber parts.

Product range for Indian buyers

Round/square/flat/rectangular bars, step rods; seamless rolled rings, riding gear rings, slewing races, gear rings; gear/pinion/coupling/turbine shafts, spindles, gear wheels, crankshafts; torsion bars, springs; sleeves, housings, discs.

Material data

Chemistry (typical, wt%): C 0.480.55, Si 0.150.35, Mn 0.701.00, Cr 0.801.10, V 0.15. Harden 830885 C oil, temper 540680 C (machine parts) or 400500 C (springs); elasticity to ~300 C. Same grade across AISI 6150 / 51CrV4 / 1.8159 / EN47 / SUP10.

Standards & quality

Manufactured to ASTM A29, EN 10083-3 / EN 10089, DIN, ISO; EAF + LF + VD melting; full NDT (UT/MT/PT/RT); EN 10204-3.1 / 3.2.

Commercial & logistics

Lead time 1530 working days; FOB Shanghai / CIF to Nhava Sheva, Mundra, Chennai, Kandla, Visakhapatnam.

Enquire with Jiangsu Liangyi: sales@jnmtforgedparts.com +86-13585067993 Jiangyin, Jiangsu, China.

Jiangsu Liangyi is an independent manufacturer; grade names indicate the material supplied.
