12CrMoWVNbN10-11 1.4906 Creep Resistant Martensitic Steel Forgings for HP Steam-Turbine Blades and Rotors Blades, Rotors and Fasteners Jiangsu Liangyi

Product Description

Jiangsu Liangyi is an ISO 9001:2015-certified forging manufacturer in China supplying 12CrMoWVNbN10-11 / W.Nr. 1.4906 open-die forgings, turbine blades, rotor shafts and bars to power-generation, turbine and ultra-supercritical projects in India and worldwide, to EN 10302.

Why 12CrMoWVNbN10-11 / 1.4906 for Indian turbine projects

1.4906 is an advanced W-Nb-N-strengthened 1011% Cr creep-resistant martensitic steel for HP/IP steam-turbine blades, rotors and high-temperature fasteners to ~600 C, offering higher creep strength than the older 12% Cr blade steels with steam-oxidation resistance. For India's power-generation and turbine sectors, it suits blades, rotors, fasteners and valve internals.

Documented capability

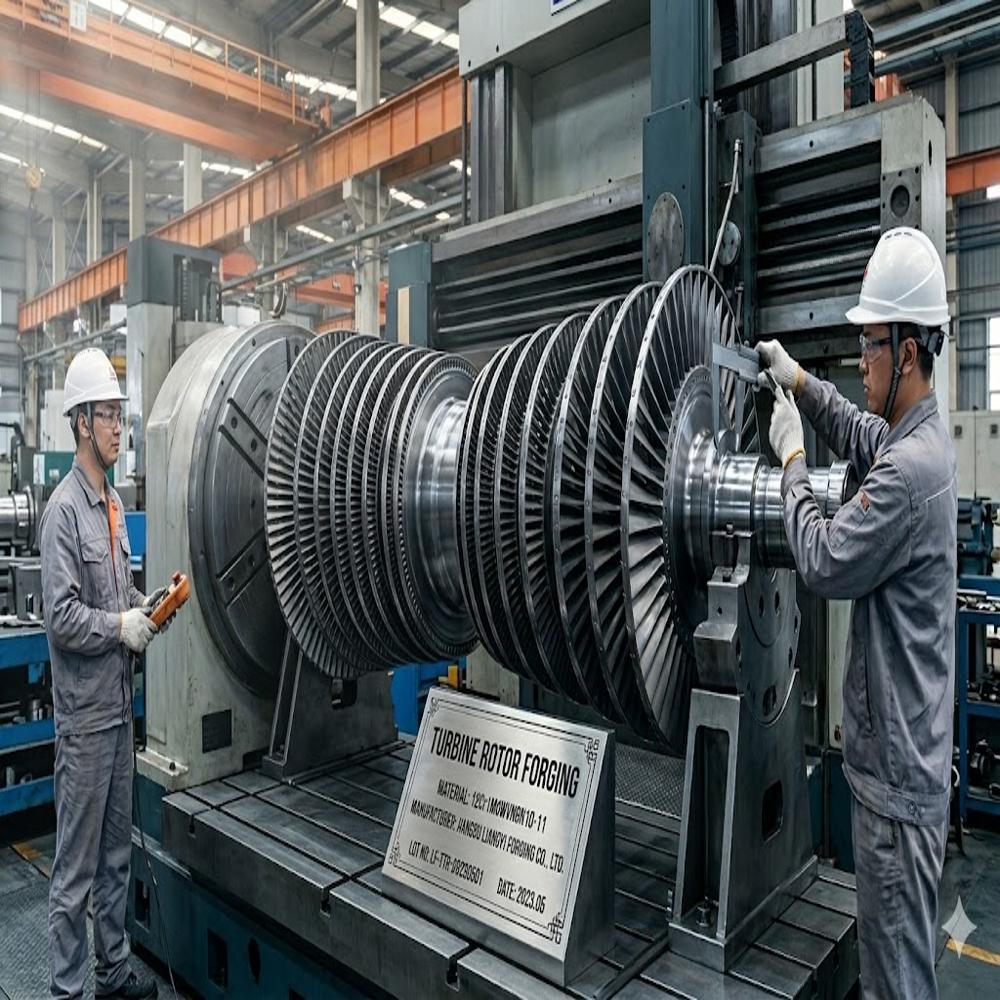

Steam turbines (HP/IP): blades, vanes, rotor shafts, discs.

High-temperature bolting: bolts, studs, fasteners to ~600 C.

Valves/sealing: valve spindles, stems, internals, seal/guide rings.

General: bars, discs, hubs, sleeves, custom forgings.

Product range for Indian buyers

Forged HP/IP steam-turbine blades and vanes; turbine rotor shafts and discs; high-temperature bolts, studs and fasteners; valve spindles, stems and internals; seal and guide rings; round/square/flat/rectangular bars; discs, hubs, sleeves.

Material data

Chemistry (EN 10302 / 1.4906, wt%): C 0.110.13, Cr 10.011.5, Mo 0.901.10, W 0.901.10, V 0.150.25, Nb 0.040.10, N 0.040.09, Al 0.010. Harden ~10701100 C + double temper; to ~600 C. Same steel across 12CrMoWVNbN10-11 / 1.4906 / X12CrMoWVNbN10-1-1.

Standards & quality

Manufactured to EN 10302; EAF + LF + VOD melting; 100% UT; full chemistry (Al/N verification); creep-rupture / elevated-temperature tensile testing on request; EN 10204-3.1 / 3.2.

Commercial & logistics

Lead time by project; FOB Shanghai / CIF to Nhava Sheva, Mundra, Chennai, Kandla, Visakhapatnam.

Enquire with Jiangsu Liangyi: sales@jnmtforgedparts.com +86-13585067993 Jiangyin, Jiangsu, China.

Jiangsu Liangyi is an independent manufacturer; designations indicate the material supplied.
